Climate∞

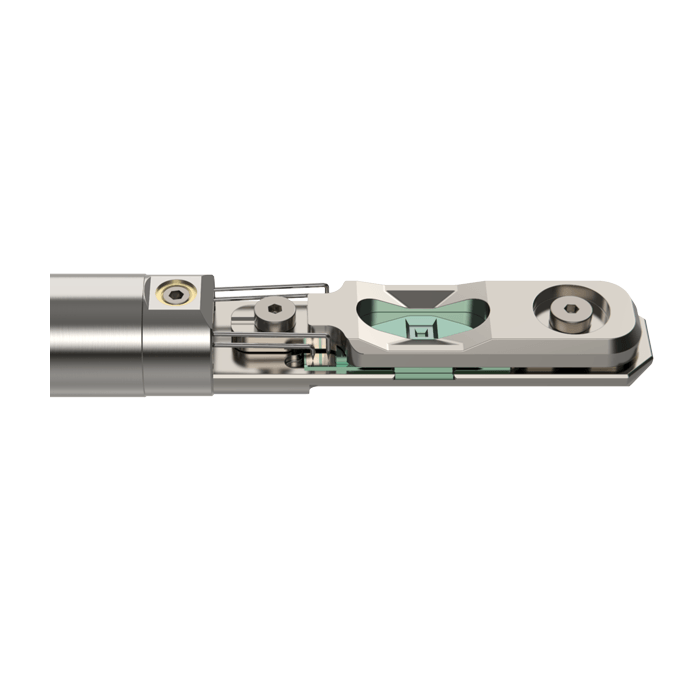

In Situ TEM platform with simultaneous heating and biasing in a controlled gas atmosphere

The Climate gas & heating solution enables dynamic studies of cyclic specimen transformations in gaseous environments at elevated temperatures and sub-Angstrom level.

Key Features
- Simultaneous application of electrical and thermal stimuli
- Easily switch between STEM and TEM modes
- Universal tip - Can be transferred to other TEM holders
- New infinity holder also enables liquid studies - Modular design
- Continuous real-time control - Temperature, voltage, pressure, flow, gas composition
- The most stable system available - In terms of image drift after a change in gas/heating/pressure parameters
- EDX compatible tip - Option for the highest possible resolution

Vaporizer

The Climate G+ Vaporizer now allows you to better replicate actual service conditions by controlling water vapour content within the reaction chamber inside your TEM. Ideally suited to in situ sties involving catalysis, nanomaterial growth and corrosion.

Independently control water vapour pressure (0 to 25 mbar) to produce an environment that more closely represents real world operating conditions by adding water vapour to your own tailored mix of 3 other gases, with control over:
- Pressure
- Flow rate
- Temperature
For more details download the product datasheet.
