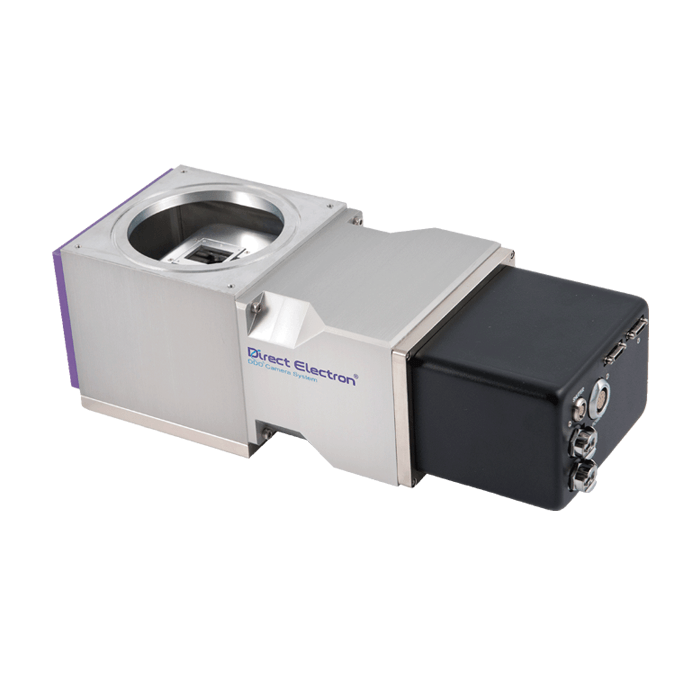

DE-DirectView

World's most cost-effective direct detection TEM camera

Excellent upgrade option for your existing TEM offering low dose imaging, electron counting and 4D STEM

Key Features
- High-resolution imaging at low magnification - Resolve lattice fringes at <50,000x magnification
- Perfect for imaging beam sensitive materials - 2D materials, MOFs, biologicals etc.
- Cryo-EM - Highly cost-effective TEM camera
- 4D STEM - Combines speed & sensitivity
- 4k × 3k (12.6 million) pixels - 6.0 μm pixels offering sub-nm resolution
- Wide compatibility - Suits almost all existing TEMs
- Software - Caters for all experience levels
